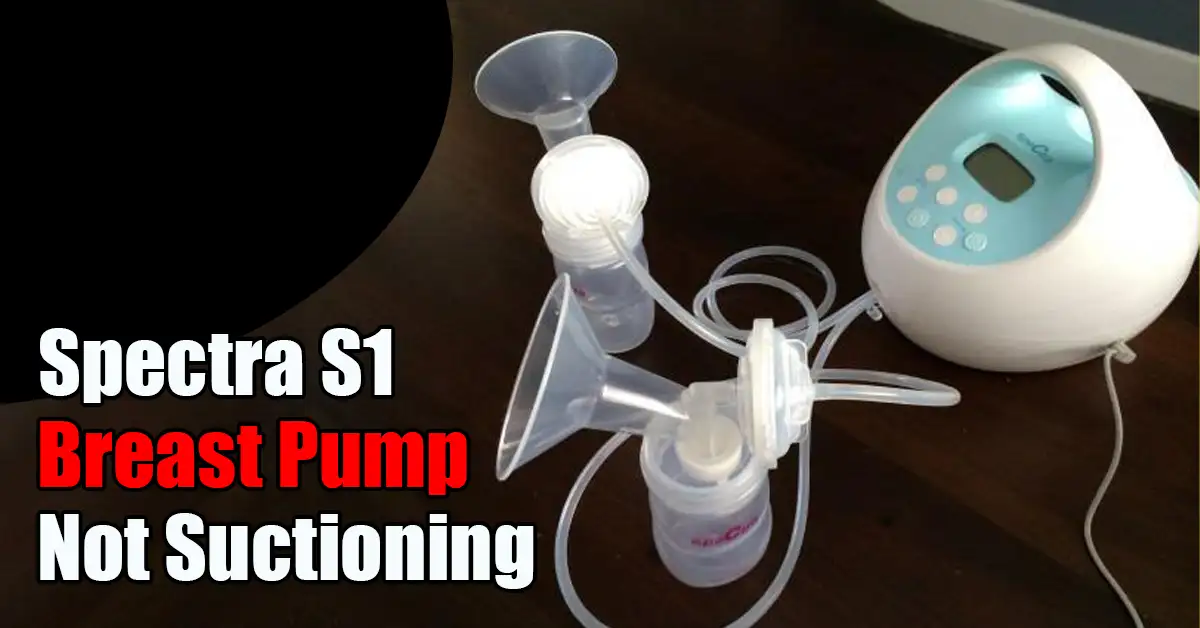

Spectra S1 Breast Pump Not Suctioning? Try This Fix

Ever had your Spectra S1 breast pump stop suctioning mid-session? You’re not alone — and don’t worry, it’s usually an easy fix.

I’ve been there myself. Picture this: it’s midnight, your baby’s half-asleep on one side, and your pump just quits on the other Frustrating, right? But good news — you likely don’t need a new pump.

As a mom, writer, and seasoned pumper, I’ll show you what to check, what to clean, and what parts might need a quick swap. Let’s get your pump working like new again — fast.

Understanding the Problem

So, what does it really mean when your Spectra S1 breast pump isn’t suctioning?

It can feel like nothing’s happening. You hear the motor, but there’s no pull. Or the suction feels weak — like it’s trying, but not getting anywhere. Sometimes, it even stops mid-pump, especially if you’ve used it a lot.

I remember one night I thought my pump was broken after just two weeks. Turned out, I’d put the duckbill valve on sideways. That tiny mistake was the whole problem.

Here’s what usually causes suction loss:

• Worn-out parts — Duckbill valves and membranes wear faster than you’d think.
• Assembly errors — A part isn’t clicked in right or is a little loose.
• Flange seal issues — If there’s a gap at the breast, suction breaks.
• Moisture in the wrong spot — Like water inside the tubing or backflow protector.

It’s easy to panic and think the motor’s dead. But here’s the good news: most suction problems are small and fixable — not a motor issue.

3. 5-Minute Quick Fix Checklist (Start Here!)

Before deep diving into repairs, check these quick things. It takes five minutes — and might fix the problem right away.

• Tubing connection: Make sure both ends are fully plugged in. A loose tube = no suction.
• Duckbill valve: Give it a gentle squeeze. Is it stuck open or torn? Replace it if it doesn’t spring back.
• Power adapter: Use the original Spectra charger. Some off-brand plugs can mess with power.
• Backflow protector: Open it. Is the silicone disc lying flat and sealed? If it’s crumpled or off-track, reassemble it.
• Single pumping? Don’t forget to cap the open port. Leaving it uncapped = instant suction fail.
• Flange seal: Check for a tight fit. No gaps, no sliding. A snug bra helps hold it in place.

This quick check has saved me more than once — like the time I forgot the valve completely. Mom brain is real.

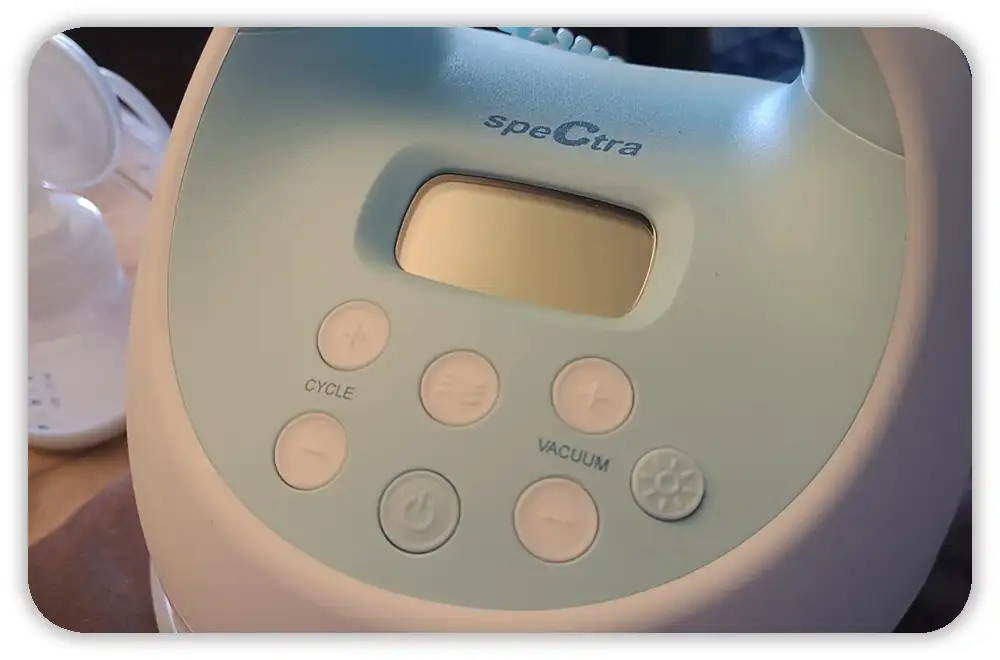

The Thumb Test: Is the Motor the Problem?

If the quick checks didn’t help, let’s test the motor.

How to do the thumb test:

1. Turn on your Spectra S1.
2. Put a clean thumb over the open tubing port.
3. Feel the suction. Does it pull in and release like normal?

Strong suction?

Your motor’s good. The problem is likely one of the parts.

Weak or no suction?

The motor could be wearing out — especially if you haven’t changed parts in a while or have used the pump heavily.

One friend of mine thought her Spectra was done for. Turns out, her off-brand duckbill had a tiny crack. A $10 replacement saved her $200.

So don’t panic. Most issues aren’t serious. But if the motor fails the thumb test after all these checks, we’ll cover what to do next in this guide.

Deep Dive: Check Every Pump Part

If your Spectra S1 still isn’t suctioning after the quick fixes, it’s time to check each part more closely. Even a tiny flaw can cause big problems. Let’s go step by step.

Duckbill Valve

This little piece does a big job. If it’s worn out, you’ll feel a big drop in suction.

• What it does: It acts like a one-way door. Milk goes out, but air doesn’t come in.
• Test it: Hold it up to the light. If the tip stays open or sags, it’s done.
• When to replace: If it feels soft, stretched, or doesn’t snap shut — swap it. I change mine every 3–4 weeks, or sooner if I pump a lot.

Backflow Protector

This keeps milk from reaching the motor. It’s key for both suction and hygiene.

Easy mistake: Putting the silicone disc in upside down — or not snapping it in tight.

What to look for:

• Small tears in the silicone
• Loose or crooked pieces
• Moisture or milk on the tubing side (this means air is leaking)

If that happens, take it apart, clean it, and maybe replace it. One time I saw fog inside my tubing. I’d missed clicking the protector shut all the way.

Tubing

Tubing needs to stay dry and sealed tight. Any damage will kill suction fast.

Check for:

• Kinks or pinched spots
• Tiny holes or tears
• Ends that are loose or stretched out
• Moisture or mold inside (if yes, toss it — don’t risk it)

Tubing is cheap and easy to replace. If you’re not sure it’s clean or sealed, swap it.

Flange & Bottle

These parts seem simple, but they still matter.

Check for:

• Cracks around the flange or bottle neck
• Cross-threaded bottles (they should screw on smooth)
• Warped plastic from boiling or steam cleaning

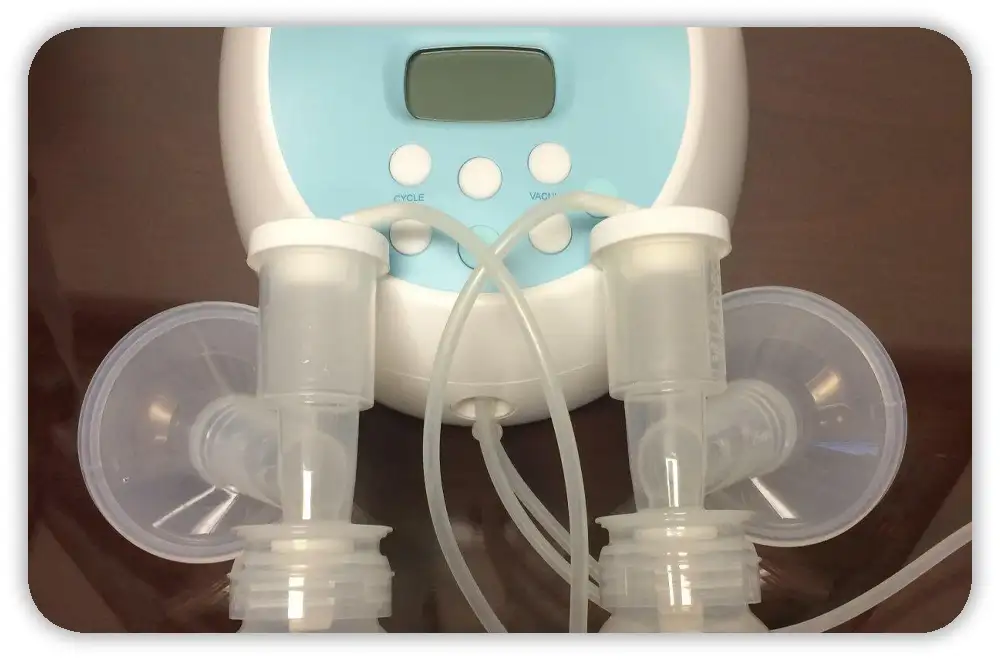

Assembly Matters: Step-by-Step Instructions

If your Spectra S1 still isn’t suctioning and all the parts look fine, the problem could be how you put them together. I’ve fixed suction more than once just by taking everything apart and starting fresh.

Here’s how to build your Spectra S1 kit the right way:

• Start with the flange: This is the part that touches your breast. It connects right to the bottle.
• Screw on the bottle: Make sure it’s tight. No cross-threading, no gaps.
• Attach the duckbill valve: Push it into the bottom of the flange. It should point straight down and sit snug.
• Connect the backflow protector: Snap the silicone disc into the plastic case. One end goes on the flange, the other connects to the tubing. Make sure both ends click tight.
• Hook up the tubing: One end goes into the backflow protector, the other into the pump.

Single pumping? Don’t forget this!

If you’re using one side, cap the other port on the pump. Leave it open? No suction. I once spent 15 minutes fixing this at 2 a.m. because I forgot to plug it.

Common mistakes to double-check:

• Backflow protector not snapped tight
• Duckbill not fully pushed in
• Bottle loose or off-center
• Tubing hanging halfway off
• Port cap missing during single pumping

Take your time. A quick rebuild often solves everything — even at 3 a.m.

Perfecting Flange Fit and Breast Seal

Let’s talk flange fit. I thought my pump just didn’t work with my body. But really? I was using the wrong size flange.

Why flange size matters: If it doesn’t fit right, you won’t get a seal. No seal = no suction. It can also cause pain, low milk flow, or clogged ducts.

Check your fit at home:

• Turn on the pump in massage mode
• Watch how your nipple moves
• It should move freely, not rub the sides
• Your areola should stay mostly outside the tunnel

Too small? Your nipple rubs or feels sore

Too big? The areola gets pulled in, and suction feels off

Spectra’s standard flanges are 24mm and 28mm, but many moms need smaller. I switched to a 19mm insert — total game-changer.

Other things that affect your seal:

• Loose pumping bra — It should hold the flange firmly in place
• Moving during pumping — Shifting can break the seal
• Dry skin — A little lanolin or coconut oil helps create a seal

I like using a dab of coconut oil before each session. It makes the fit more comfy and helps with suction.

Signs your seal isn’t right:

• A soft hissing sound
• Weak suction, even though the motor’s on
• Milk drips but doesn’t spray
• The flange slips or shifts while pumping

Even a small change — like trying a new flange size or adjusting your bra — can make a big difference. I wish I’d known that sooner.

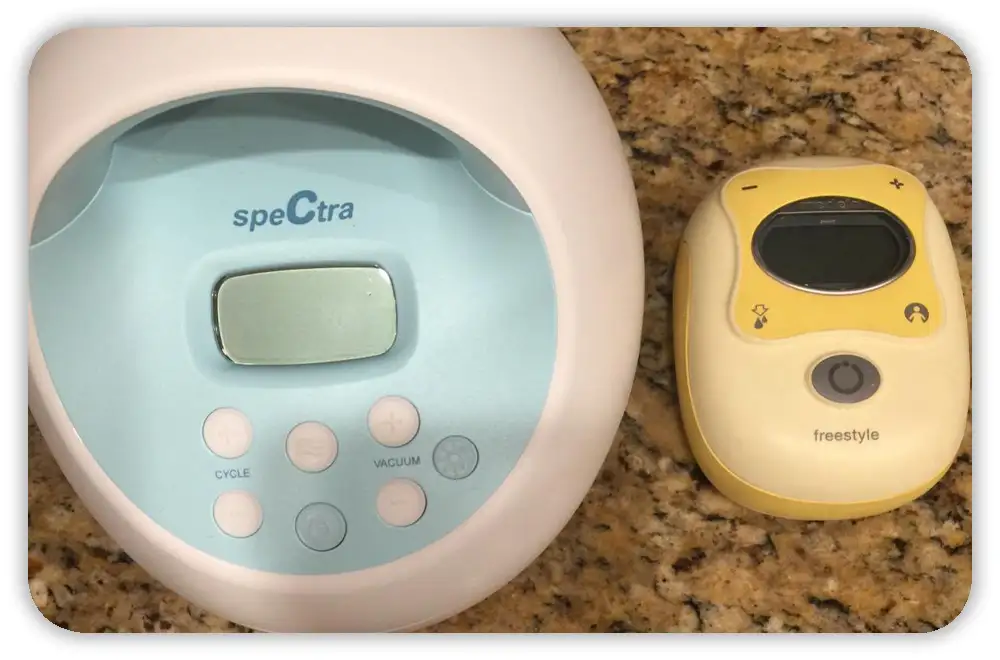

Optimizing Spectra S1 Settings

Let’s talk settings — because even if your parts are perfect, the wrong settings can hurt suction or slow milk flow.

Massage mode vs. Expression mode:

• Massage mode is fast and gentle. It mimics baby’s quick sucking to trigger letdown.
• Expression mode is slower and stronger. Use it once milk starts flowing.

How I use them:

• Start in Massage mode (Cycle 70 / Vacuum 1–2)
• When milk starts, switch to Expression mode (Cycle 38 / Vacuum 4–6)
• If flow slows mid-pump, I switch back to Massage. It often triggers a second letdown.

My favorite settings:

• Massage mode: Cycle 70 / Vacuum 2
• Expression mode: Cycle 42 / Vacuum 5

But don’t feel locked in — adjust to what feels right. Every body is different.

Tips for better letdown:

• Take deep breaths. Relax. Baby pics help me.
• Use warmth — a warm compress or shower can help.
• Try hands-on pumping. Massage your breast gently while pumping.

Important: Higher vacuum doesn’t mean better suction. Too much can hurt or cause swelling. I learned that the hard way. Go with what’s comfortable — comfort = better milk flow.

Replace Worn Parts: How Often and What to Watch For

Pump parts don’t last forever. If you pump daily, you’ll need to replace parts often to keep suction strong and milk flowing well.

Here’s a quick guide:

Duckbill valves:

• Replace every 2–4 weeks
• Pump 3+ times a day? Replace every 2 weeks
• Signs it’s time: soft tip, weak suction, or slow milk flow

Backflow protectors:

• Swap every 2–3 months
• Watch for leaks or torn silicone
• I clean mine weekly and replace them every quarter

Tubing:

• Replace as needed
• Toss if you see kinks, loose ends, mold, or moisture that won’t go away

Flanges and bottles:

• Replace every 6 months, or sooner if cracked
• Warped from boiling or rough cleaning? Time to switch

Advanced Fixes: Could the Motor Be Dying?

Still getting weak suction after checking everything? The motor might be wearing out.

Check your pump’s total run time: You can see how many hours your pump has been used.

How to check: Hold Cycle + and Vacuum – at the same time. The screen will show the total hours.

My first pump gave out around 650 hours — right after 9 months of daily use.

What usage hours mean:

• 0–300 hours: Like new
• 300–500 hours: Mid-life
• 500+ hours: Time to watch for signs of wear
• 600+ hours: You may feel weaker suction or hear odd noises

Signs your motor is failing:

• Suction fades or cuts in and out
• Clicking, rattling, or odd sounds
• Buttons stop working mid-pump
• Weak pull, even with all-new parts

Still under warranty?

If your Spectra S1 is under two years old and you’re the original owner, you may get a free replacement.

Before contacting Spectra USA:

• Record a short video showing the problem
• Find your serial number (on the bottom of the pump)
• Take a photo of your receipt if you have it

Contact info:

Email: support@spectrababyusa.com

Phone: Customer service is fast and friendly

If you’re out of warranty, no worries — I’ll cover budget-friendly pump replacement tips in the next post.

Warranty and Customer Support

Okay, so you’ve tried everything — new duckbills, reassembly, even the thumb test — and your Spectra S1 still isn’t suctioning. If you think the motor might be the issue, don’t panic. Spectra’s U.S. customer support is actually helpful, and you might still be under warranty.

How to contact Spectra USA:

• 📧 Email: support@spectrababyusa.com
• 📞 Phone: 1-855-446-6622 (Monday–Friday, 9am–5pm EST)
• 🌐 Website: spectrababyusa.com → Click “Contact Us”

What to have ready:

• Short video — Show the pump running. Include the thumb test if you can. Make sure they can hear the suction (or lack of it).
• Serial number — Look for the white sticker on the bottom of the pump. It usually starts with “S1.”
• Receipt or order proof — If you bought it within the last 2 years, you’re likely still covered.
• Brief description — Example: “Pump turns on, but suction is weak after part replacements,” or “Motor stops mid-session.”

What to expect from the warranty process:

If you’re the original owner and it’s been less than two years, they’ll likely send you a new pump. Sometimes they’ll troubleshoot by email first. They might ask for a return, but they usually cover shipping.

One mom I know got a full replacement within a week. I got mine at 16 months — all I needed was a quick video and a screenshot of my Amazon receipt.

Final Thoughts

I know how rough it is when your pump stops mid-session — especially late at night. It’s frustrating, exhausting, and the last thing you want to deal with.

But here’s the good news: most suction problems can be fixed. You don’t need to buy a new pump. You just need a little time, a good checklist, and a lot of patience.

You’ve already made it through so much — sleepless nights, feeding struggles, and everything else. That takes strength. And now, if your Spectra S1 isn’t working, you’ve got the tools to fix it like a pro.

You don’t need to be an expert. Just a tired, determined mom — and that’s more than enough.

So take a deep breath. You’re doing great. And if you want more tips, honest reviews, or mom-to-mom advice, check out more on Toddler Diary. I’ve got guides on milk storage hacks, feeding wins (and fails), and all the little things that make life easier.

Let’s make your next pumping session smoother — together.
